Question 1

Assuming TLDP and RSVP are both being used in an MPLS network core which of the following statements is true?

Options :

A : TLDP is used to create the inner label, RSVP is used to create the outer label.

B : TLDP is used to create the outer label, RSVP is used to create the inner label.

C : TLDP and RSVP cannot be used in the same network since they both provide the same label.

D : When RSVP is used, TLDP must be disabled and static vc labels should be used.

E : TLDP and RSVP can be used to create either labels based on how they are configured.

Answer: A

Question 2

Click the exhibit.

Other-Image-2433d17fa-3588-45e6-8ae9-6a3daf9b8a4c

Which of the following about the inter-AS model A VPRN configuration on ASBR1 is TRUE?

Options :

A : The route-distinguisher value must be 64496:10 for successful VPRN operation.

B : An export policy is not required for successful VPRN operation

C : The 'family vpn-ipv4' command is required under the BGP configuration for successful VPRN operation.

D : The neighbor address should be 10.10.10.4 under the BGP configuration for successful VPRN operation.

E : The VPRN configuration on ASBR1 is correct.

Answer: A

Question 3

Click on the exhibit below.

Other-Image-2dd200be0-1a69-4248-bc75-48f0b9c7eb85

Based on the following configuration which VLANs will be managed by the management VPLS?

Options :

A : VLANs 1-4094

B : VLAN 0

C : There is not enough information provided

D : None, this is an invalid configuration

Answer: A

Question 4

Click the exhibit.

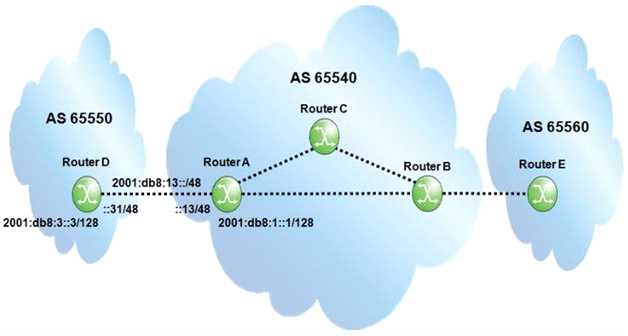

Other-Image-2b95eafbf-fbf2-4a8c-99a1-42596ec08dae

Assume all router-IDs are properly configured. Which of the following configurations is required on the Alcatel-Lucent 7750 SR router A to establish an IPv6 BGP session to router D?

Options :

A :

B :

C :

D :

Answer: C

Question 5

Which of the following statements is FALSE when providing Internet access using route leaking between a VRF and the global routing table? :>

Options :

A : It is best used when a single VPN is required to provide Internet access, as well as to maintain VPN connectivity between different customer sites.

B : If there is no requirement for the VRF to contain the full Internet routing table, a default route to the Internet gateway router is sufficient.

C : Only one interface on the CE is required for both VPN and Internet connectivity.

D : The Nokia 7750 SR supports route leaking in full mesh and extranet VPRN topologies only.

Answer: C
